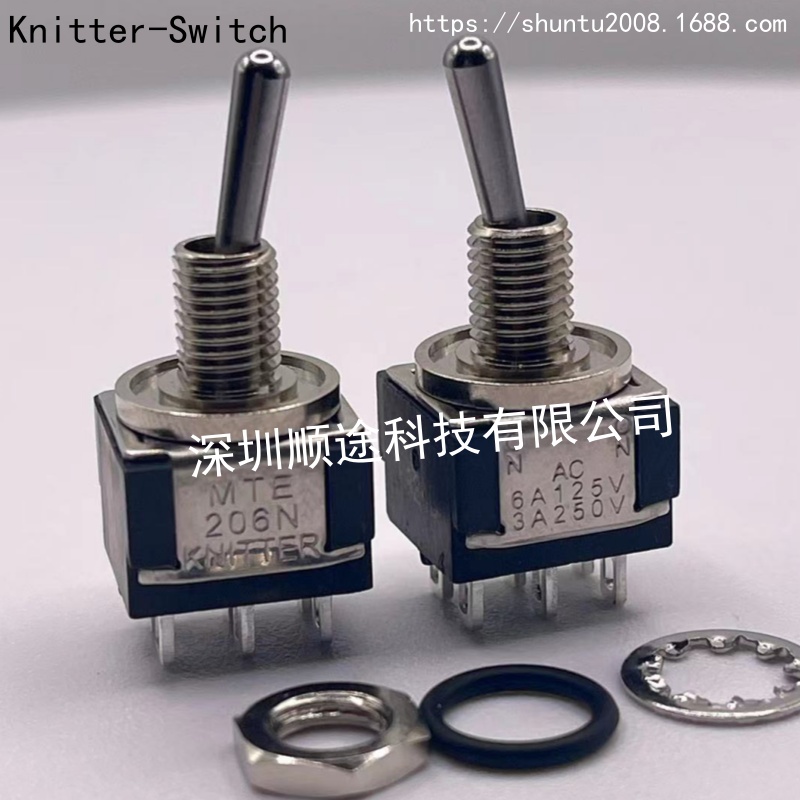

MTE 206 N德国Knitter-Switch钮子开关防水6mm DPDT ON-ON自锁
发布时间：2026-09-01 09:15:24
| 品牌 | Knitter-Switch | 型号 | MTE 206 N |
| 类型 | 钮子开关 | 开关数 | 单极 |
| 启动方式 | 拔动 | 额定电压 | 125VAC |
| 额定电流 | 6A | 开关次数 | 10万次 |
| 电寿命 | 10万次 | 产品认证 | CE |
| 机械寿命 | 10万次次 | 最高电压 | 125VACV |
| 工作温度 | -45+140℃ | 厂家 | Knitter-Switch |
型号：MTE 206 N
品牌：Knitter-Switch
名称：钮子开关
防护：防水IP67

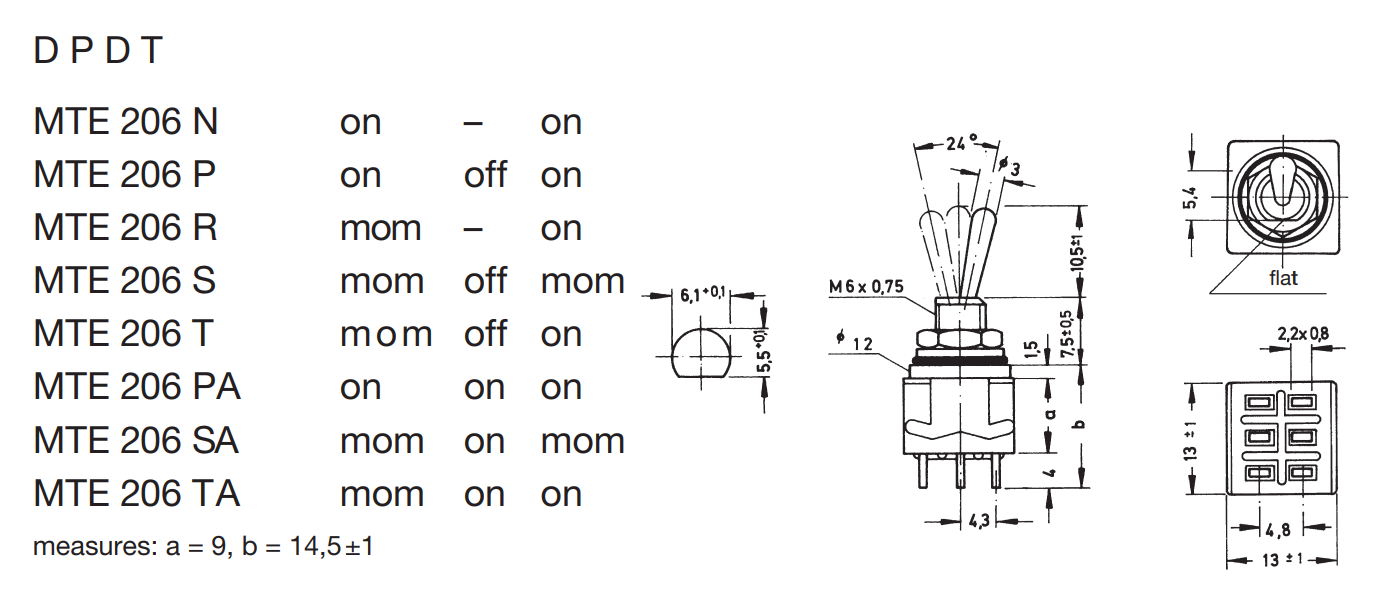

电极：DPDT
电路：ON-ON 2档自锁保持
安装孔：6mm
电流电压：250 V AC, 3 A / 125 V AC, 6 A， 30 V DC, 4 A / 12 V DC, 5 A 6 V DC, 6 A
Contact resistance: < 20 mΩ
Insulation resistance: > 1000 MΩ at 500 V DC
Dielectric strength: 1500 V, 50 Hz for the duration of 1 minute
Operating temperature: – 45 °C to +140 °C
Mechanical life: minimum 300 000 operations
Contacts: coin silver (common contact copper alloy, silver-plated)
also available gold-plated, version B and G, see page 4
Terminals: solder tags, copper alloy silver-plated
Material: case: diallyle-phthalate, meets UL 94 V–0, black
lever: chromium-plated, l parts: nickel-plated
Mounting: bushing M 6 x 0.75, with locking plate, key 9 mm, tightening torque 49 Ncm max.
Soldering conditions: hand-soldering – max.: 60 W, 3 sec, 420 °C
wave-soldering – max.: 5 sec, 270 °C
