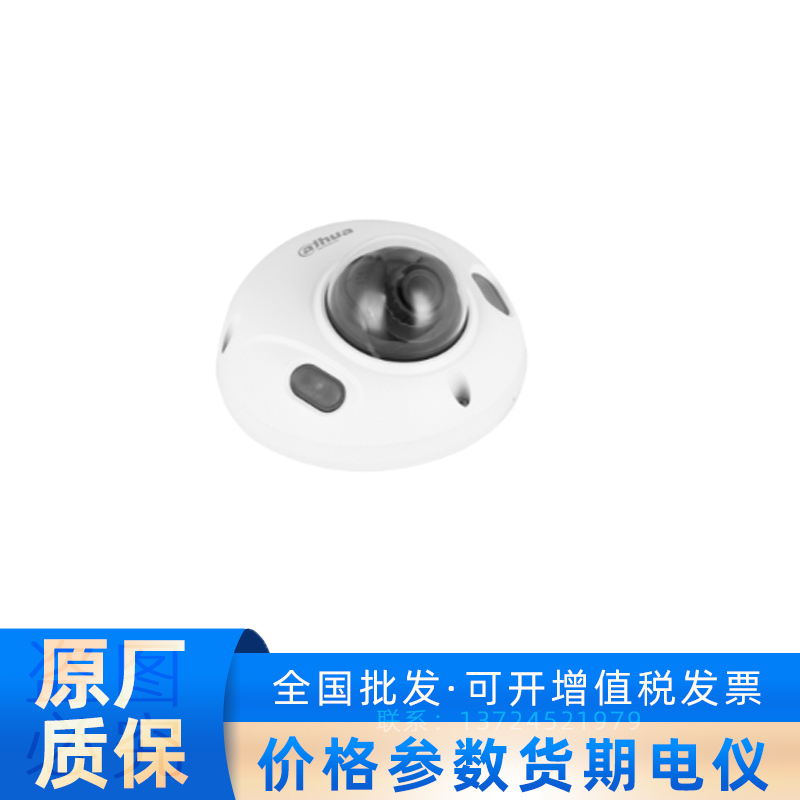

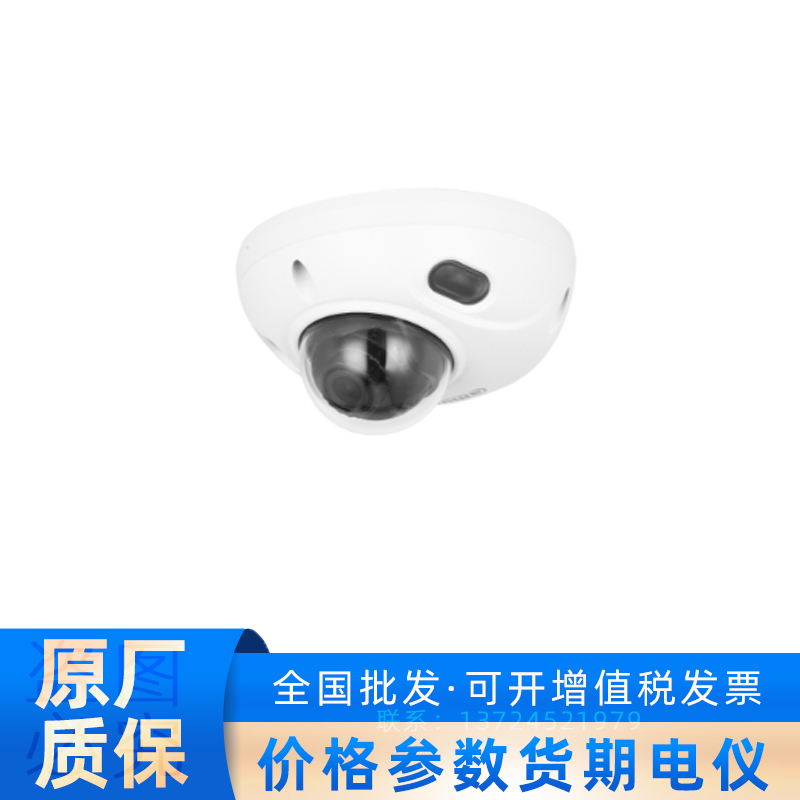

IPC-HDBW3541F-AS-S2 大华500万红外定焦网络摄像机

发布时间：2026-09-04 09:27:08

品牌	见详情	型号	见详情
像素	见详情	款式	半球型摄像机
数据类型	见详情	网络类型	见详情
特殊功能类型	见详情

　　High-Quality Imaging with 5 MP Resolution

　　3 Streams for Diverse Application Needs

　　Enhanced Deep Learning-Based Human and Vehicle Classification

　　Adaptive Bitstream Control Strategies for Storage Cost Reduction

　　Built-in Mic for Real-Time Audio Security

　　Supports Max. 256G Micro SD card

　　IP67 and IK10 Ratings for Protection Against Harsh Environments

　　Camera

　　Image Sensor

　　1/2.7" CMOS

　　Max. Resolution

　　2960 (H) × 1668 (V)

　　ROM

　　128 MB

　　RAM

　　512 MB

　　Scanning System

　　Progressive

　　Electronic Shutter Speed

　　Auto/Manual 1/3 s–1/100,000 s

　　Min. Illumination

　　0.005 lux@F1.4 (Color, 30 IRE)

　　0.0005 lux@F1.4 (B/W, 30 IRE)

　　0 lux (Illuminator on)

　　S/N Ratio

　　>56 dB

　　Illumination Distance

　　Up to 30 m (98.43 ft)

　　Illuminator On/Off Control

　　Auto/Manual

　　Illuminator Number

　　2 (IR LED)

　　Pan/Tilt/Rotation Range

　　Pan: 0°–355°; Tilt: -20°–70°; Rotation: 0°–355°

　　Lens

　　Lens Type

　　Fixed-focal

　　Lens Mount

　　M12

　　Focal Length

　　2.8 mm; 3.6 mm; 6 mm

　　Max. Aperture

　　F1.4

　　Field of View

　　2.8 mm: Horizontal: 111°; vertical: 58°; diagonal: 132°

　　3.6 mm: Horizontal: 92°; vertical: 45°; diagonal: 110°

　　6 mm: Horizontal: 57°; vertical: 30°; diagonal: 65°

　　Iris Control

　　Fixed

　　Close Focus Distance

　　2.8 mm: 0.9 m (2.95 ft)

　　3.6 mm: 1.6 m (5.25 ft)

　　6 mm: 3.2 m (10.50 ft)

　　DORI Distance

　　Lens

　　Detect

　　Observe

　　Recognize

　　Identify

　　2.8 mm

　　63.6 m

　　(208.66 ft)

　　25.4 m

　　(83.33 ft)

　　12.7 m

　　(41.66 ft)

　　6.4 m

　　(21.00 ft)

　　3.6 mm

　　85.4 m

　　(280.18 ft)

　　34.2 m

　　(112.20 ft)

　　17.1 m

　　(56.10 ft)

　　8.5 m

　　(27.89 ft)

　　6 mm

　　124.0 m

　　(406.82 ft)

　　49.6 m

　　(162.73 ft)

　　24.8 m

　　(81.36 ft)

　　12.4 m

　　(40.68 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

　　Intelligence

　　IVS (Perimeter Protection)

　　Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

　　AI SSA

　　Yes

　　Quick Pick

　　With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

　　Smart Search

　　Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
