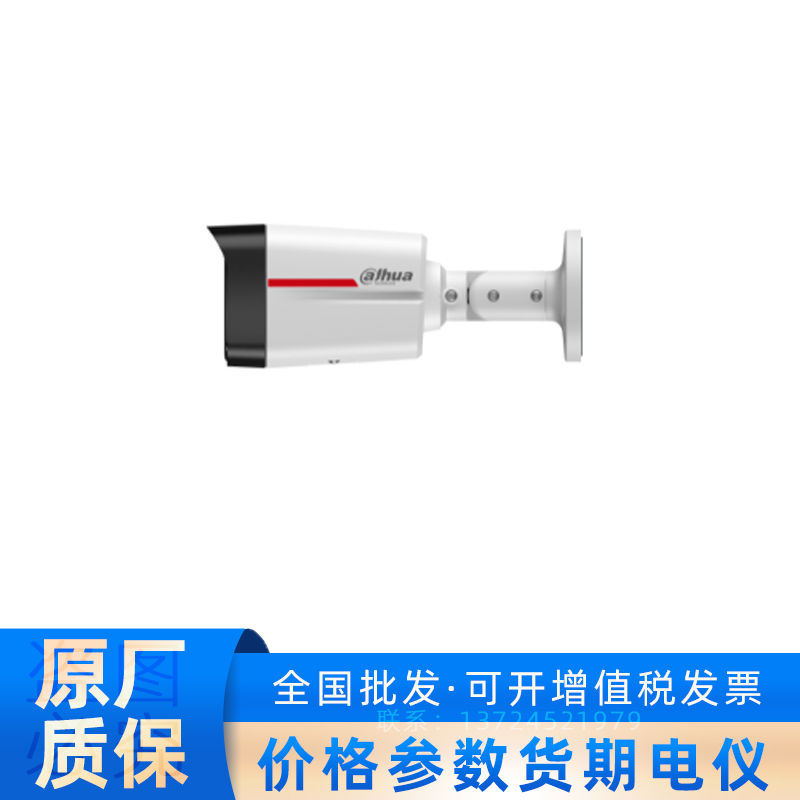

DH-IPC-HFW2849TL-S-PRO 大华800万定焦枪型网络摄像机

　　DH-IPC-HFW2849TL-S-PRO 大华800万定焦枪型网络摄像机

　　High-Quality Imaging with 8 MP Resolution

　　Exceptional Image Quality in Low-Light Environments by WizColor Technology

　　Deep Learning-Based Human and Vehicle Classification

　　Built-in Mic for Real-Time Audio Security

　　Supports Max. 256G Micro SD card

　　Efficient H.264+/H.265+ Compression Technology

　　IP67 Ratings for Protection Against Harsh Environments

　　Camera

　　Image Sensor1/1.8" CMOS

　　Max. Resolution3840 (H) × 2160 (V)

　　ROM128 MB

　　RAM256 MB

　　Scanning SystemProgressive

　　Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s

　　Min. Illumination0.0004 lux@F1.0

　　S/N Ratio>56 dB

　　Illumination DistanceUp to 50 m (164.04 ft) (Warm light)

　　Illuminator On/Off ControlAuto;Manual

　　Illuminator Number4 (Warm light)

　　Angle AdjustmentPan: 0° – 360°

　　Tilt: 0°– 90°

　　Rotation: 0°–360°

　　Lens

　　Lens TypeFixed-focal

　　Lens MountM16

　　Focal Length2.8 mm; 3.6 mm; 6 mm

　　Max. ApertureF1.0

　　Field of View2.8 mm: H: 110°; V: 59°; D: 131°

　　3.6 mm: H: 93°; V: 49°; D: 110°

　　6 mm: H: 57°; V: 30°; D: 66°

　　Iris ControlFixed

　　Close Focus Distance2.8 mm: 2.8 m (9.19 ft)

　　3.6 mm: 4 m (13.12 ft)

　　6 mm: 12 m (39.37 ft)

　　DORI Distance

　　Lens

　　Detect

　　Observe

　　Recognize

　　Identify

　　2.8 mm

　　84.0 m

　　( 275.59 ft)

　　33.6 m

　　( 110.24 ft)

　　16.8 m

　　( 55.12 ft)

　　8.4 m

　　( 27.56 ft)

　　3.6 mm

　　102.0 m

　　( 334.65 ft)

　　40.8 m

　　( 133.86 ft)

　　20.4 m

　　( 66.93 ft)

　　10.2 m

　　( 33.46 ft)

　　6 mm

　　169.0 m

　　( 554.46 ft)

　　67.6 m

　　( 221.78 ft)

　　33.8 m

　　( 110.89 ft)

　　16.9 m

　　( 55.45 ft)

　　*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

　　Intelligence

　　IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

　　SMDSMD Plus

　　Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

　　Video

　　Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

　　Smart CodecSmart H.265+; Smart H.264+

　　Video Frame RateMain stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps)

　　sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

　　*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

　　Streaming Capability2 streams

　　Resolution8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

　　Bit Rate ControlVBR;CBR

　　Video Bit RateH.264: 32 kbps–8192 kbps;

　　H.265: 12 kbps–8192 kbps

　　Day/NightColor/B/W

　　BLCYes

　　HLCYes

　　WDR120 dB

　　White BalanceAuto; natural; street lamp; outdoor; manual; regional custom

　　Gain ControlAuto/Manual

　　Noise Reduction3D NR

　　Motion DetectionOFF/ON (4 areas, rectangular)

　　Region of Interest (RoI)Yes (4 areas)

　　Smart IlluminationYes

　　Image Rotation0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)

　　MirrorYes

　　Privacy Masking4 areas

　　LDCYes

　　Audio

　　Built-in MICYes, built-in Mic

　　Audio CompressionG.711a; G.711Mu; PCM; G.726

　　Alarm

　　Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
