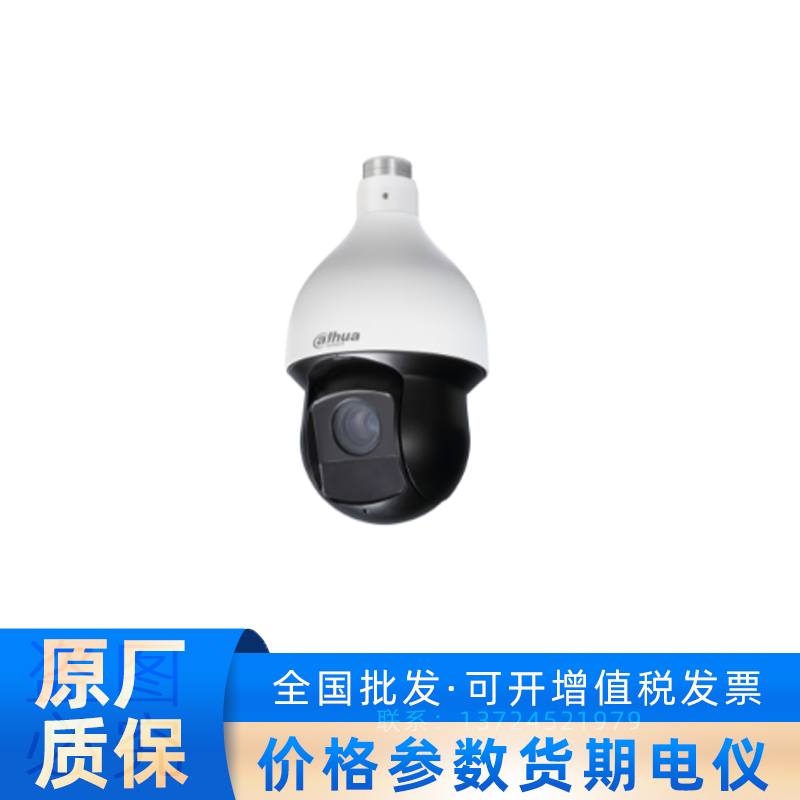

DH-SD59430U-HNI大华400万30倍变焦红外PTZ网络摄像头

　　Image Sensor

　　1/3” CMOS

　　Pixel

　　4MP

　　Max. Resolution

　　2592(H) x 1520(V)

　　ROM

　　RAM

　　128M

　　Electronic Shutter Speed

　　1/1–1/30,000 s

　　Scanning System

　　Progressive

　　Min. Illumination

　　Color: 0.05 Lux@F1.3

　　B/W: 0.005 Lux@F1.3

　　0 Lux (IR light on)

　　Illumination Distance

　　Distance up to 100m (328ft)

　　Illuminator On/Off Control

　　Illuminator Number

　　4

　　Lens

　　Focal Length

　　4.5mm~135mm

　　Max. Aperture

　　F1.6–F4.4

　　Field of View

　　Optical Zoom

　　30x

　　Focus Control

　　Auto/Manual

　　Close Focus Distance

　　Iris Control

　　Auto/Manual

　　DORI Distance

　　Detect

　　Observe

　　Recognize

　　Identify

　　2700m(8858ft)

　　1080m(3543ft)

　　540m(1772ft)

　　270m(886ft)

　　PTZ

　　Pan/Tilt Range

　　Pan: 0°–360°; Tilt: -15° ~ 90°,auto flip 180°

　　Manual Control Speed

　　Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s

　　Preset Speed

　　Pan: 400°/s; Tilt: 300°/s

　　Presets

　　300

　　Tour

　　8 (up to 32 presets per tour)

　　Pattern

　　5

　　Scan

　　5

　　Speed Adjustment

　　Support

　　Power-off Memory

　　Support

　　Idle Motion

　　Preset/Tour/Pattern/Scanning

　　Protocol

　　DH-SD

　　Pelco-P/D (auto recognition)

　　General Intelligence

　　Event Trigger

　　Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.

　　IVS

　　Object abandoned/missing

　　Artificial Intelligence

　　Smart Capture

　　Support human, motor vehicle and non-motor vehicle image capture.

　　Perimeter Protection

　　Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

　　Face Detection

　　Support

　　SMD Plus

　　Support

　　Auto Tracking

　　Support
