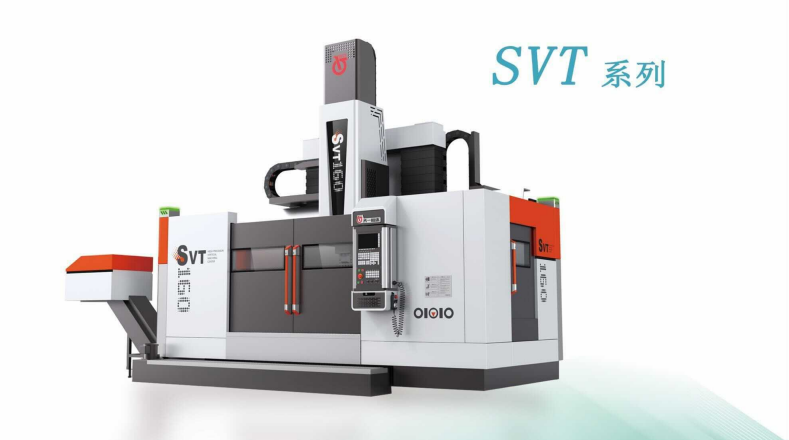

齐重立车SVT100x8/2P-MC

　　单柱立式车削加工中心

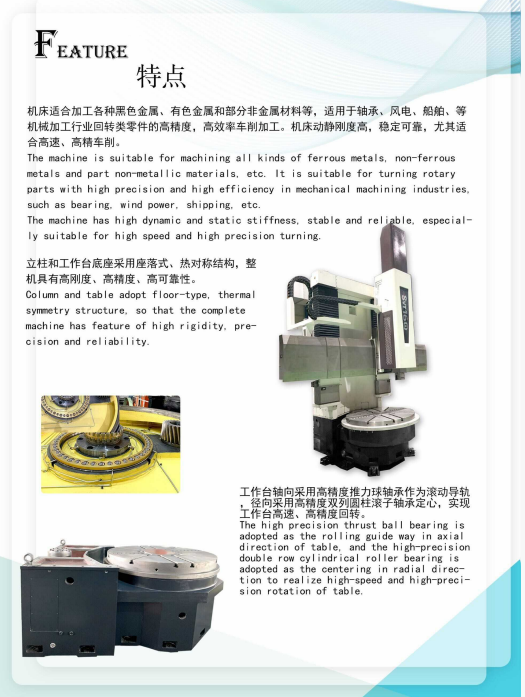

　　特点

　　机床适合加工各种黑色金属、有色金属和部分非金属材料等，适用于轴承、风电、船舶、等机械加工行业回转类零件的高精度，高效率车削加工。机床动静刚度高，稳定可靠，尤其适合高速、高精车削。

　　The machine is suitable for machining all kinds of ferrous ls, non-ferrousls and part non-llic materials, etc. It is suitable for turning rotaryparts with high precision and high efficiency in mechanical machining industries,such as bearing,wind power,shipping,etc.The machine has high dynamic and static stiffness, stable and reliable, especial-ly suitable for high speed and high precision turning.

　　立柱和工作台底座采用座落式、热对称结构，整机具有高刚度、高精度、高可靠性。

　　Column and table adopt floor-type, thermalsymmetry structure, so that the completemachine has feature of high rigidity, pre-cision and reliability.

　　垂架滑枕采用矩形截面的锻钢，车削刚度高。The vertical railhead is made ofhigh quality forged steel with rectangular section, which has highturning stiffness.

　　立柱侧面安装有分级定位齿条，横梁可在立柱上定位，保证刀架在水平移动时与工作台的平行度。

　　The side of column is mounted withgraded positioning rack to realize theaccurate positioning of cross rail onthe column and ensure the parallelismbetween railhead and table when movinghorizontally.

　　立柱内部采用封砂结构，具有良好的抗振性。

　　Sand sealing structure is used inside the column,which has good vibration resistance.

　　配备多工位车削刀库，可以实现双向就近换刀，定位，满足多样化加工需求，

　　Wachine is equipped with disc multi positions turningtool magazine, to achieve bidirectional nearby toolchanging and accurate positioning which meets diversified machining needs.
